Benefits
- Identifies cable defects before they fail
- Does not require a cable outage
- Quick, safe and non-destructive
- Expert cable condition analysis & reports
Features
- Detects and measures PD activity in single and three phase cables
- Detects and measures PD activity as numerical values
for both ultrasonic and TEV emissions - Works with most insulated cable types up to distances of several miles
- Small, robust, portable and easy to use
fact: Partial Discharge (PD) activity is the primary cause of failure in cables
fact: Offline PD testing requires cable outages and can be disruptive
fact: The CableData™ Collector works online and can detect and measure PD activity

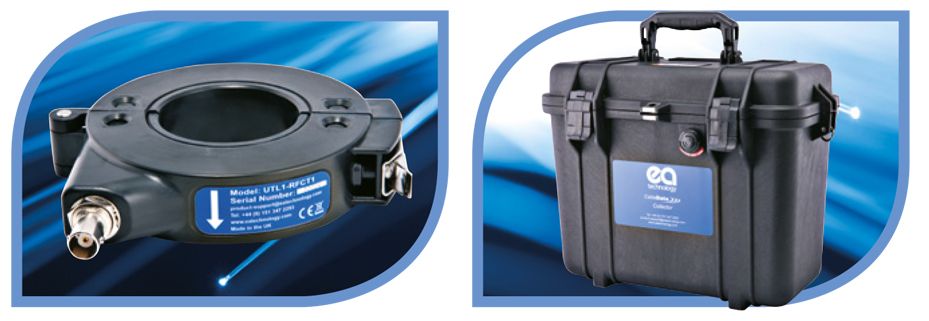

system components
The CableData CollectorTM is supplied as a ready-to-use
system, in its own carry case.

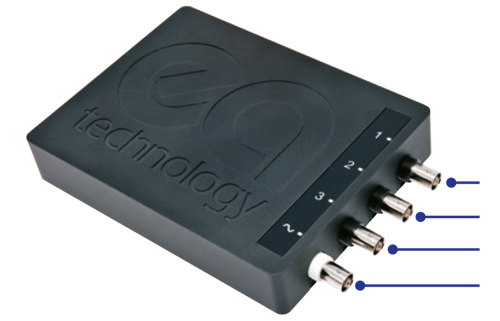

The CableData CollectorTM is machined from aluminum then anodized, making it lightweight and tough. It is conveniently powered via its USB port from a laptop or PC.
Channel 1 – user configurable for phase
Channel 2 – user configurable for phase
Channel 3 – user configurable for phase
Power frequency phase reference
The CableData CollectorTM is supplied as a ready-to-use
system, in its own carry case.
The CableData CollectorTM is machined from aluminum then anodized, making it lightweight and tough. It is conveniently powered via its USB port from a laptop or PC.
Channel 1 – user configurable for phase
Channel 2 – user configurable for phase
Channel 3 – user configurable for phase
Power frequency phase reference
